Spacers

  • Available for "in-cab" and "exterior" handrail installations.
  • Vault Mounts - check out our Vault handrail series page for more details!
  • 1.25"dia, in-cab removable spacers, come standard with every handrail.
  • 1.25"dia, in-cab removable spacers, come standard with every handrail.

Spacers

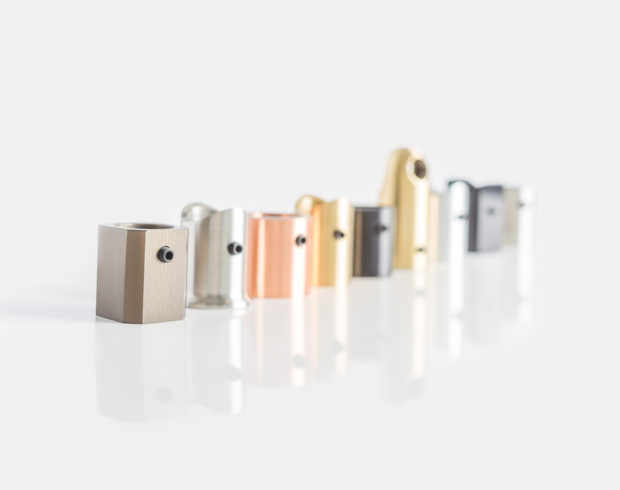

Lustre Products spacers and mounting systems have become the industry standard.  Great looks and reliability set our spacers apart.  Numerous materials and finishes that match up with your rails to create just what you’re looking for.  Choose between the In Cab Mounting removable spacer assembly (with the specialized Toggler fastener), which allows for installation from within the elevator car cab.  Or choose the Exterior Cab Mounting spacer assembly (using the 3/8″ stud).  Included with every handrail order, spacer kits can also be purchased separately.

Spacers

Options:

  • Round
  • Flat
  • Vault
  • Materials & Finishes

Round

Barrel

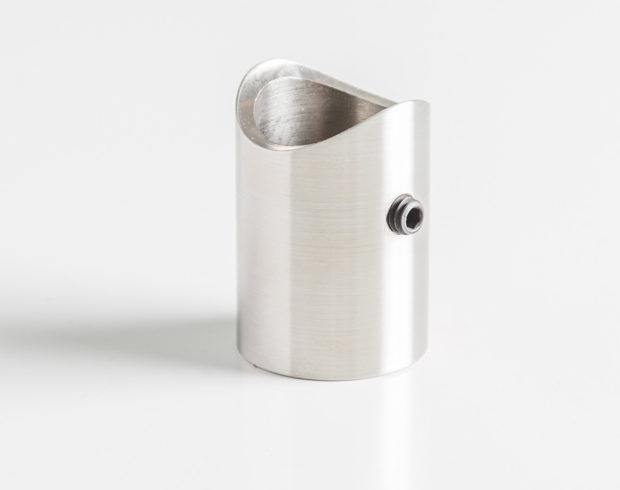

1.25" dia (In-cab Removable)

Barrel spacer mount - no flange. For Round handrails.

Available in all finishes.

1.25" dia (Exterior Mounting)

Barrel spacer mount - no flange. For Round handrails.

Available in all finishes.

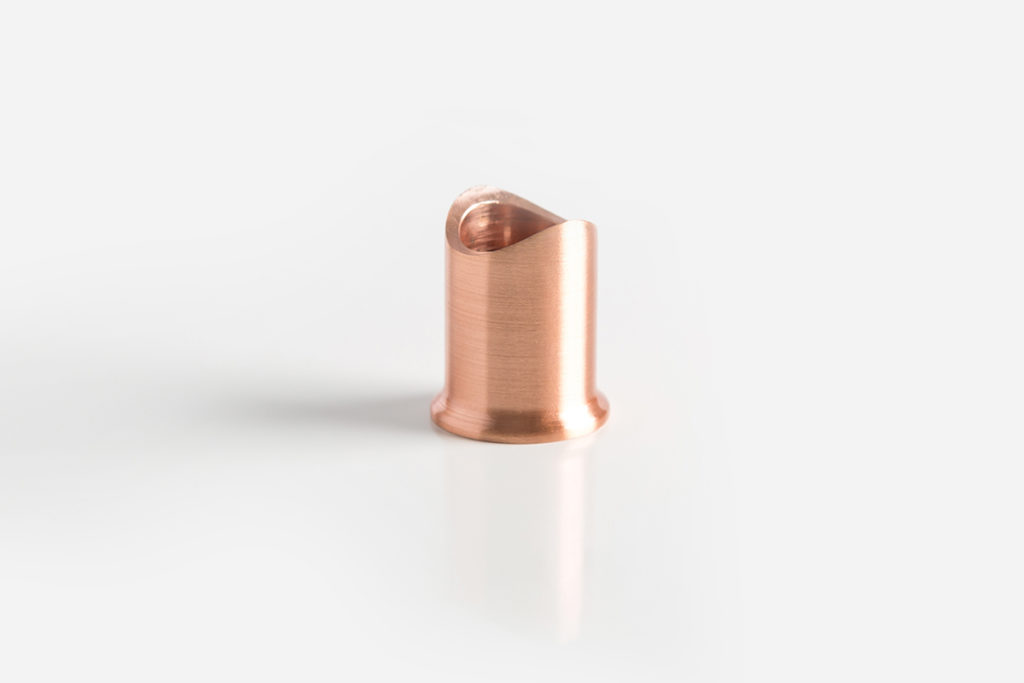

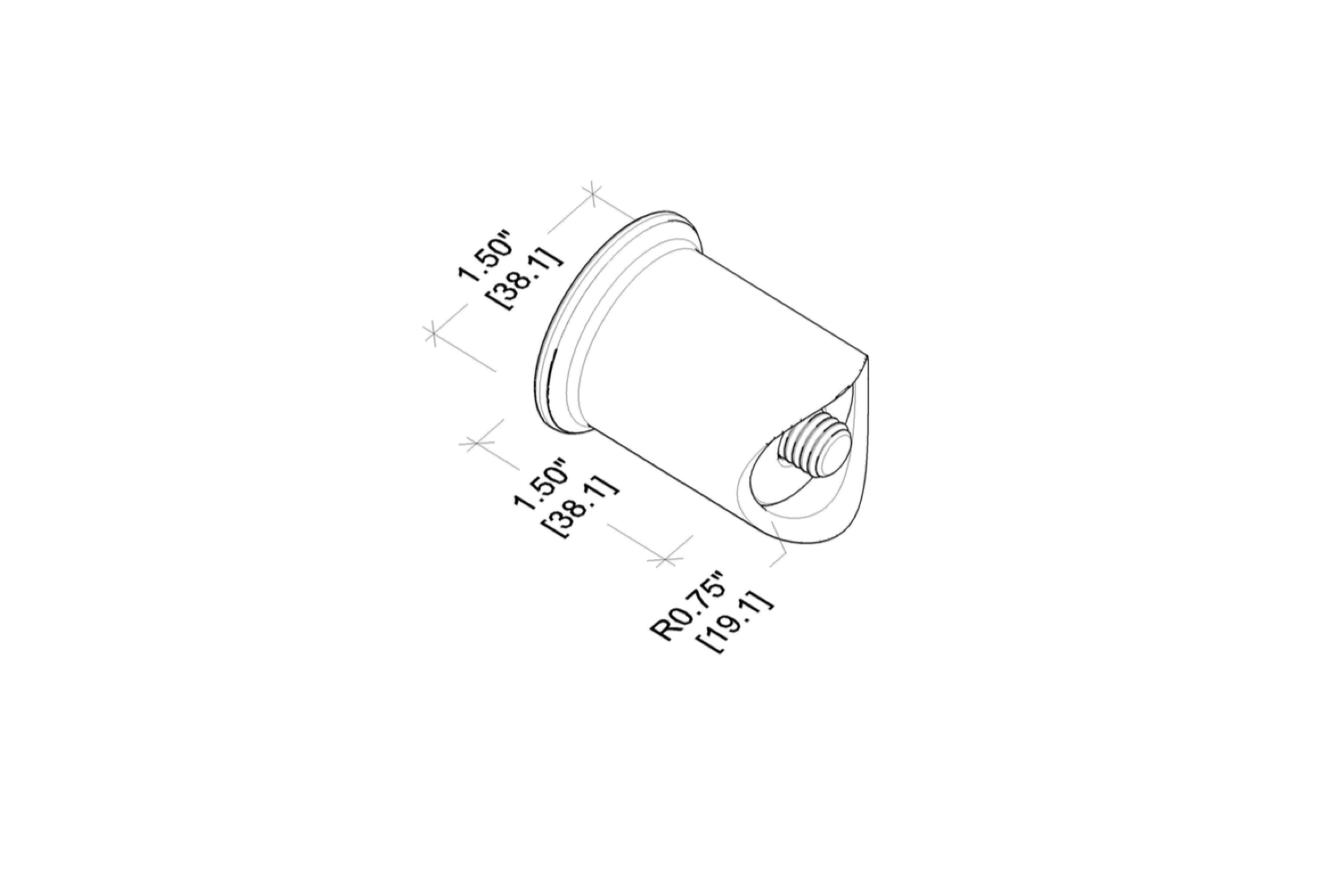

1.5" dia with flange (In-cab Removable)

Barrel spacer mount - with flange. For Round handrails.

Available in all finishes.

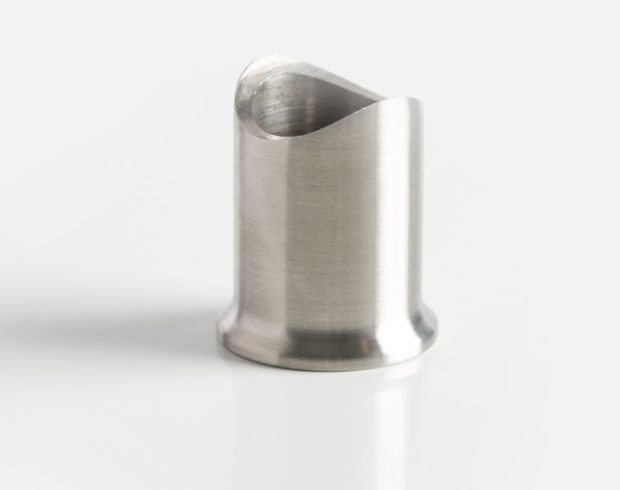

1.5" dia with flange (Exterior Mounting)

Barrel spacer mount - with flange. For Round handrails.

Available in all finishes.

Soft Square

1.25" Square (In-cab Removable)

Soft-square spacer mount for round rails.

Available in all finishes.

1.25" Square (Exterior Mounting)

Soft-square spacer mount for round rails.

Available in all finishes.

Saddle Mount

1.25" dia Saddle Mount (In-Cab Removable)

For round rails.

Available in all finishes.

1.25" dia Saddle Mount (Exterior Mounting)

For round rails.

Available in all finishes.

Flat

Barrel

1.25" dia (In-Cab Removable)

Barrel spacer mount for flat handrails.

Available in all finishes.

1.25" dia (Exterior Mounting)

Barrel spacer mount for flat handrails.

Available in all finishes.

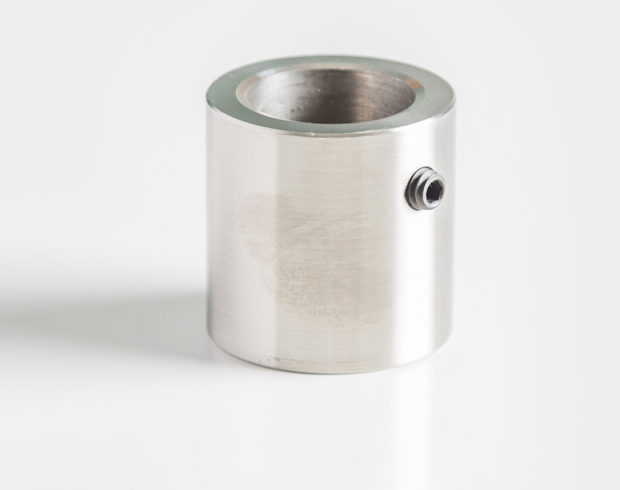

1.5" dia (In-cab Removable)

Barrel spacer mount for flat handrails.

Available in all finishes.

1.5" dia (Exterior Mounting)

Barrel spacer mount for Flat handrails.

Available in all finishes.

Soft Square

1.25" Square (In-cab Removable)

Soft-square spacer mount for flat handrails.

Available in all finishes.

1.25" Square (Exterior Mounting)

Soft-square spacer mount for flat handrails.

Available in all finishes.

Vault

Vault Mount Spacers

Flat-Top

Available for 1.5" dia round Vault Handrails.

Available in all finishes.

Ball-Top

Available for 1.5" dia round Vault Handrails.

Available in all finishes.

Flat-Top Ring

Available for 1.5" dia round Vault Handrails.

Available in all finishes.

Ball-Top Ring

Available for 1.5" dia round Vault Handrails.

Available in all finishes.

Materials & Finishes

Materials & Finishes

Stainless Steel

Brushed #4

See Sample

Polished #8

See Sample

Bronze

Brushed #4

See Sample

Polished #8

See Sample

Brass

Brushed #4

See Sample

Polished #8

See Sample

Copper

Brushed #4

See Sample

Polished #8

See Sample
